| Categories | Automation Control System |
|---|---|
| Brand Name: | CQCY |
| Model Number: | DPU controller |
| Certification: | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Place of Origin: | Shanghai, China |
| MOQ: | 1set |
| Price: | USD/+50 dollars to 1000 dollars+1set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000+1set+per day |
| Delivery Time: | 10-30 work days |
| Packaging Details: | Carton packing |
| 1.Processor core: | ARM Cortex A8 core |
| 2.Processor main frequency: | 600MHz |
| 3.supply voltage: | 24VDC±10% |
| 4.Rated power: | 5W |
| 5.Communication protocol: | MODBUS TCP/IP (10/100/1000M adaptive), RS-485(115.2 kbps), MODBUS RTU extension protocol (115.2 kbps) |
PAS-300 Distributed Control System(ntegrated management ,intelligent)

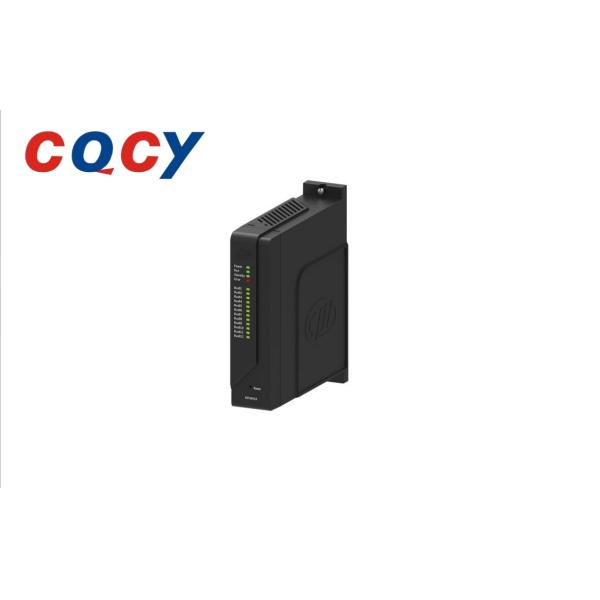

DPU controller is the core module of PAS300 distributed control system, and it is the main control module integrating power module, main control module and communication module. The controller unit consists of two CPU modules and a base which are completely identical in configuration and redundant to each other. Collect! The field data reported by the O module controls the field equipment and provides data to the upper computer operator station for display.
Product features:
1.The controller unit adopts the combined structure of "module+base", which is installed in the cabinet and supports flat installation.
2. Each CPU module has a corresponding indicator light and reset switch.
3. Interface: 24VDC power interface; Controller module connection slot; Connect the 485 bus interface of /0 module; Ethernet port.
4.Support redundancy function; Diagnostic function; Power-off data saving function; Run the data synchronization function; Online undisturbed downloading function.
|
