| Categories | Wave Soldering Machine |
|---|---|
| Brand Name: | AST |
| Model Number: | SELPOT-400 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | 38000 USD |
| Payment Terms: | T/T |
| Supply Ability: | The production capacity is 100 units a month |
| Delivery Time: | 7-20 |
| Packaging Details: | Vacuum packing plus wooden box packing |

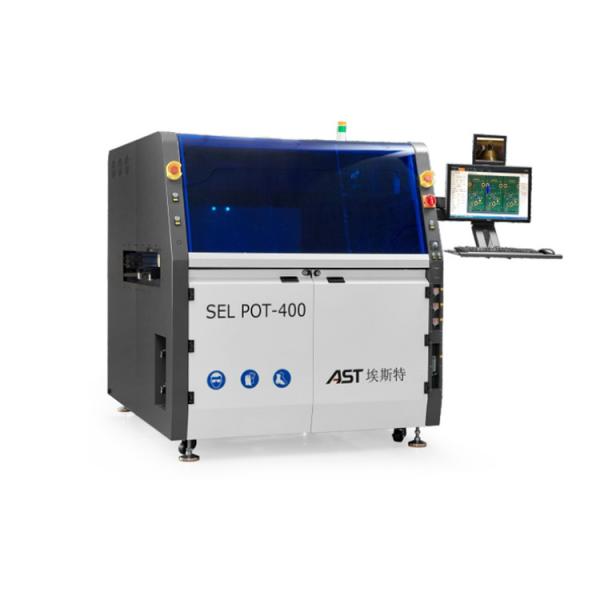

| Name: | Mini Wave Soldering Machine |
| Model number: | SELPOT-400 |
| Product name: | Mini selective wave soldering machine |
| Function: | Fully automatic |
| Usage: | DIP Production Line |
| PCB size L*W (mm): | 450mm x 400mm |
| Power: | 3-phase 5-wire system 380V 50HZ |
| Dimension L*W*H(mm): | 1520 x 1650mm x 1650mm |
| Weight (kg): | 1600 KG |
✦ On-line transportation,and it can realize on-line production with
the previous section of machine.
✦ The machine integrates flux spraying, preheating and soldering
into whole.
✦ By program switching, it can only select spraying, only select
soldering, or firstly select spraying and then soldering.
✦ The maximum PCB dimensions: 400 x 400 mm.
✦ Small in occupation space and low in energy consumption.
✦ It is suitable for high quality, small batch and multiple
variety.
✦ The optimum flexibility.
| machine type | SELPOT-400 | |
| Machine parameters | Dimensions | L1520mm X W1650mm X H1650mm |
| power supply | Three-phase five-wire system 380V 50HZ | |
| Shipping parameters | Rail adjustable range | 100-400MM |
| PCB board size | L450 X W400MM | |
| transport height | 900卤30mm | |
| sports platform | Cast aluminum platform with lightweight design | |
| Ball Screw and Panasonic Servo | ||
| Movement accuracy | 卤0.05 mm | |
| Tin furnace parameters | Crest drive | Standard mechanical pump/electromagnetic pump option |
| Number of tin furnaces | single cylinder | |
| Tin furnace capacity | 13 kg / furnace | |
| Nitrogen consumption | About 1.5 ~2 m3/h per tin cylinder | |
| programmatically | Online/offline programming; pictures and Gerber files are available; |
|
