Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump

1, Detailed specification of product

1.Basic information:

• Color: White
• Housing Material: Nylon46
• Flammability: 94V-0
• Pitch: 1.00mm
• Circuits: 20 30 40positions
• Insulation O.D.: 0.80mm
• Mounting type: wire to board
• Application: Signal, wire to board
• Terminal materials: Phosphor bronze
• Finish terminal: gold-flash type
• Terminal Package: 15K pcs/reel
• Suitable terminal: A1004 series
• Terminal processing method: E-stamping before tin-plated

2. Electrical characteristic:

• Current Rating: 1A AC DC
• Voltage Rating: 50V AC, DC
• Contact Resistance: 20mΩ Max
• Insulation Resistance: 100mΩ
• Withstanding Voltage: 500V AC/minute

3. Mechanical characteristic:

• ​​Temperature Range:-25°C ~+85°C
• Terminal Insertion Force: 0.50kgf (Max.)
• Terminal/Housing Retention Force: 0.50kgf (Min.)
• Pin Retention Force: 0.50kgf (Min.)

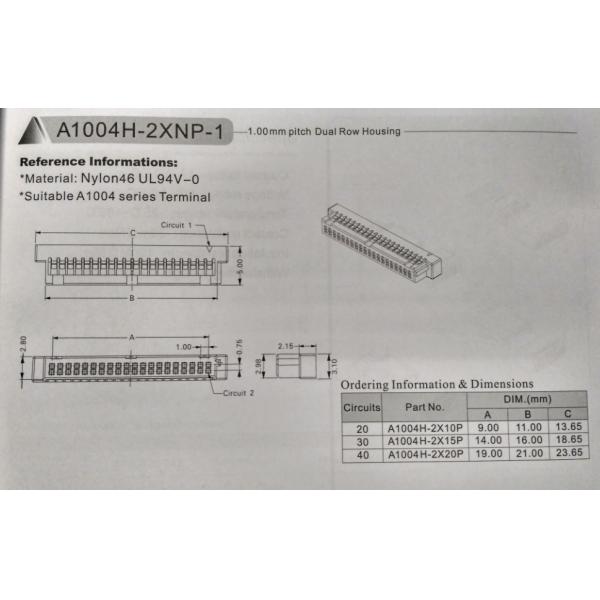

Other detailed data please check the pictures as below.
