BW 160 High Precision Drilling Mud Pump For Borehole Drilling

Categories Drilling Mud Pump
Model Number: BW-160
Supply Ability: 1000000 Sets/month
Product Name: BW 160 High Precision Drilling Mud Pump For Borehole Drilling
Structure: Water Well Mud Pump
Usage: Water
Fuel: Diesel
Power: Hydraulic
Feature: Critical Cleaning / Residue Free
Pressure: High Pressure
Application: Metering
Place of origin: Hebei,China
Brand Name: JINZHOU SHITAN
Certification: ISO
Place of Origin: China
MOQ: Negotiation
Price: Negotiation
Payment Terms: T/T, Western Union
Delivery Time: 7-10 days
Packaging Details: Standard Export Package
  • Product Details
  • Company Profile

BW 160 High Precision Drilling Mud Pump For Borehole Drilling

BW 160 High Precision Drilling Mud Pump For Borehole Drilling
Product Specifications
AttributeValue
Product NameBW 160 High Precision Drilling Mud Pump For Borehole Drilling
StructureWater Well Mud Pump
Model NumberBW-160
UsageWater
FuelDiesel
PowerHydraulic
FeatureCritical Cleaning / Residue Free
PressureHigh Pressure
ApplicationMetering
Place of originHebei, China
Product Overview

The BW 160 is a high-precision drilling mud pump designed for borehole drilling applications. This reciprocating piston/plunger pump circulates drilling fluid under high pressure (up to 7,500 psi/52,000 kPa) down the drill string and back up the annulus. As essential equipment for oil well drilling, mud pumps are classified as either single-acting or double-acting based on their piston cycle operation.

Technical Parameters
ParameterSpecification
TypeHorizontal type single-cylinder Double-action pump
Cylinder Diameter95 mm
Stroke85 mm
Reciprocate Times165 times/minute
Displacement160 L/min
Pressure1.3 MPa
Volume Efficiency80%
Input Speed951 rotations/min
Transmission Shaft SpeedR180/Z5.5kw
Input Pipe Diameter50mm
Output Pipe Diameter40mm
Mass (including engine)200 kg
Dimensions1110 × 725 × 965 mm
Key Features
  • Portable design with small volume and light weight
  • Horizontal three-cylinder reciprocating single-acting piston pump
  • Four adjustable flows and four pressure settings
  • Long service life with simple operation
  • Flexible and reliable performance
  • Uses standard parts for easy maintenance
  • Ideal for geological and engineering exploration in various industries
  • Suitable for hole depths less than 1000m
Operational Considerations

The BW-160 mud pump requires proper site drainage during operation, making rainy conditions unsuitable for drilling operations. When completing wells, pumping tests should demonstrate stable water levels for at least eight hours. For large wells with shaft wall water inflow, proper filter layer arrangement and backfill procedures must be followed, with special attention to winter conditions where frozen backfill content should not exceed 15%.

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products:

Pneumatic Drilling Rig / Air Drilling Rig(ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.), Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig(ST-30,ST-50,XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines)Crawler Track Undercarriage, Drilling Mud Pump(BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps), Drilling Air Compressor, Water Well Drill Bits(PDC Drill Bit, Tricone Bit, DTH Button Bit), Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

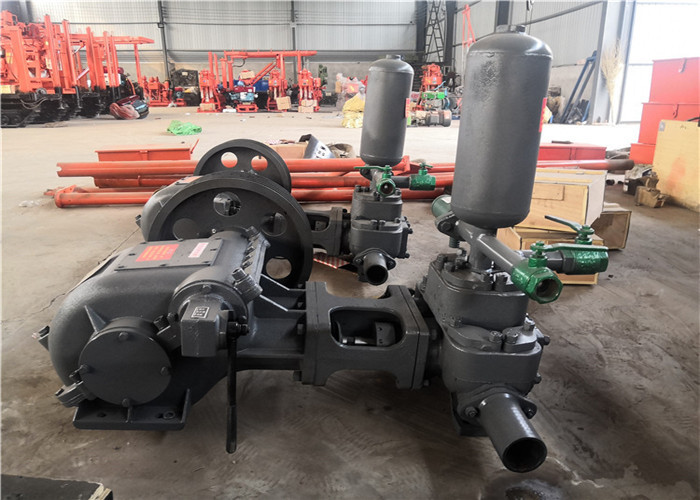

BW-160 Mud Pump front view showing hydraulic connections BW-160 Mud Pump side view with detailed component labeling BW-160 Mud Pump operational setup at drilling site Close-up of BW-160 Mud Pump control panel and gauges
