Name: NXAD3204 Industrial Omron Automation Controllers PLC Modules
Brand: Omron
Price: 50 USD

Home > Batteries >

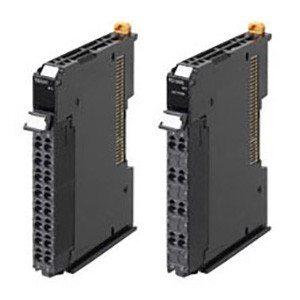

NX-AD3204 Industrial Omron Automation Controllers PLC Modules

Categories	Omron PLC NX
Brand Name:	Omron
Model Number:	NX-AD3204
Place of Origin:	China
MOQ:	1/pc
Price:	$50-500
Payment Terms:	T/T, western union, D/P, alibaba
Supply Ability:	100pc/per week
Delivery Time:	3-5 working days
Packaging Details:	Carton packaging or wooden packaging
Brand:	Omron
Condition:	100% new and original
Lead time:	2-3 working days
MOQ:	1
Warranty:	12 months
Shipping Term:	DHL/TNT/UPS/FEDEX Etc.
Series:	NX
Type:	Omron Programmable Logic Controllers PLC

Contact Now

Add to Cart

NX-AD3204 Industrial Automation and Controls Controllers PLC Modules Omron Automation and Safety NX-AD3204

Descriptions
Omron NX Family of Series — NX-ID/IA/OD/OC/MD | Modular Digital I/O Unit:

Series Features:

High-speed I/O refreshing using the EtherCAT coupler
I/O refreshing synchronized with the control cycle of the controller (synchronous refreshing)
Time-stamp inputs and outputs anywhere in the EtherCAT network can be independently controlled with sub-microsecond accuracy
Detachable terminals for easy maintenance
Screwless Push-In Plus terminal block or MIL/Fujitsu connector speeds up installation
Compact with a width of 12 mm per unit (connector type: 30 mm)
4, 8, 16 or 32 inputs for flexible I/O configuration (NX-ID/IA)
2, 4, 8, 16 or 32 outputs for flexible I/O configuration (NX-OD/OC)
Connect to the CJ PLC using the EtherNet/IPTM bus coupler
EN ISO13849-1 (PLe/Safety Category 4), IEC 61508 (SIL3) certified
4 or 8 points per Safety Input Unit. 2 or 4 points per Safety Output Unit
The Safety Units can be freely allocated in any combination with standard NX I/O
Small system size allows space savings in the cabinet.
Direct Diagnostic with LED's.
Easy wiring and easy to maintain

Specifications

I/O system	NX I/O Bus
Type of module	Analog I/O
Number of analog inputs	4
Temperature input type	None
Linear analog input type	4 to 20 mA
Resolution of the analog inputs	13 Bit
Input circuit type	Differential
Number of analog outputs	0
Linear analog output type	None
Conversion time	1 ms/unit
Signal processing	Free running
IO link master
I/O connection type	Push-in
Number of I/O connectors	1
Detachable I/O connector
Suitable for safety functions
SIL according to IEC 61508	None
Degree of protection (IP)	IP20
Height	100 mm
Width	12 mm
Depth	71 mm
Weight	70 g

NX-AUX02	Terminal block coding pins for 10x NX I/O units (terminal block: 30 pins, unit: 30 pins)
NX-PC0020	Unidade NX - Ligações 16xIOV 5-24VDC

NX-TBA122

Conector de encaixe sem parafusos de substituição, com 12 terminais de cablagem (marca A+B)
