| Categories | Tubular Stranding Machine |
|---|---|
| Brand Name: | Beyde |
| Model Number: | 500/1+6 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 set/year |
| Delivery Time: | 90 days |
| Packaging Details: | container |
| Usage: | Stranding,Twisting |
| Color: | According to customer requirement |
| Name: | Tubular stranding machine,Copper Aluminum Steel Wire Tubular Stranding Machine |
| Application: | steel,aluminium,stranding steel wire,ACSR and AAAC,Al wire |
| Wire material: | Steel,Copper |
| Function: | Stranding Wires |
| Taping head pitch: | 400 |
| Smallest take-up bobbin: | PN800 |
| Machine central height: | 700mm |
| Central pay-off bobbin: | PN400-PN630 |
| Power: | 220/380 |
| Take-up bobbin size: | PND800-PND1600 |
| Plc: | Siemens |
| Maximum bare wire diameter: | 4mm |
| Warranty: | 12 Months |

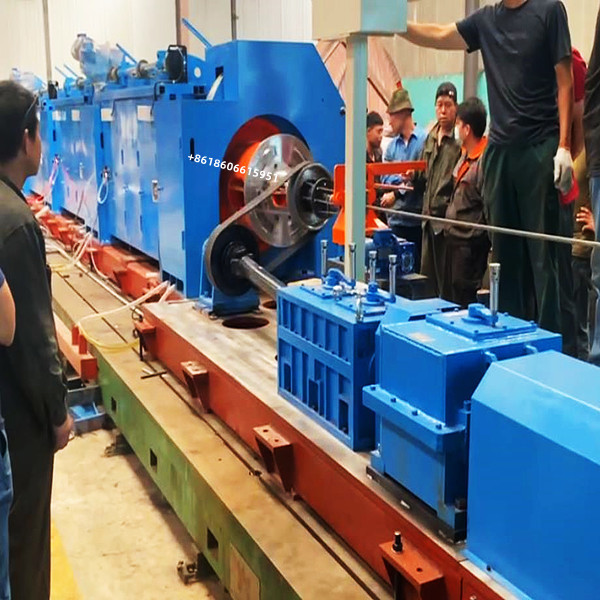

Stable Performance Copper Wire Stranding Machine Easy To Operate
1. Application for Planetary Type Copper Wire, Aluminum Wire, ACSR Wire Tubular Stranding Machine :
The machine is suitable for copper wire, aluminum wire, ACSR
stranding, also can be used in insulated cores stranded and small
and medium-sized wires refractory wrapped.
2. Technical parameter for Planetary Type Copper Wire, Aluminum Wire, ACSR Wire Tubular Stranding Machine :
| No. | Parameter name | Unit | JGG400/6+1 Type | JGG500/6+1 Type | JGG630/6+1 Type |
| 1 | Wire-core diameter | mm | Copper 1-4 Aluminium 1.5-5 | Copper 1.4-4 Aluminium 1.5-5 | Copper 1.5-4 Aluminium 1.8-5 |
| 2 | Max Wiring diameter | mm | 20 | 25 | 30 |
| 3 | Cage speed | r/min | 900 | 800 | 700 |
| 4 | Wiring pitch | mm | 20-285 | 22-329 | 24-365 |
| 5 | Wire speed | m/min | 18-256.5 | 17.6-263.2 | 16.8-138.4 |
| 6 | Pay-off bobbin | mm | PN400 | PN500 | PN630 |
| 7 | Take-up bobbin | mm | PN800-PN1600 | PN800-PN1600 | PN800-PN1600 |
| 8 | Taping head speed | r/min | 128-2380 (No stage) | 300-2155 (No stage) | 250-2000 (No stage) |
| 9 | Taping pitch | mm | 7-2004 | 8-877 | 8-1022 |
| 10 | Central height | mm | 700 | 700 | 700 |
| Bobbin | PND500 |
| Wire passing form | Inner tube |
| Max rotation speed of the tube | 600 rpm |
| Material of the tube | Special steel |
| Remove stress | After annealing treatment, the whole stranding body is more non-deforming and will enable a much longer service life. |
| Dynamic balance | Whole body dynamic balance, smoothly and low noise. |
| 3 bearings | Both ends and the middle stand by bearing, and the big bearing in the middle is forced lubrication, which reduces wear and prolongs life. |
| The cages in the tube | End shaft type, pneumatic wrench controls clamping or loosening bobbin. |
| Pay off tension | Friction belt controls the tension of wire and it is very simple. |
| Brake device of the tube body | Pneumatic brake. |
| The base of the machine | The base is welded by large I-beam and machined the top surface and the bottom surface by large planer. The whole tube body is installed on the base. The machine is easy to be installed. |
| Guide wheel of the wire | They are made by bearing steel, which is very wearable |
|
